Case nine Steel strapping tempering and painting line 12 strips in China



Steel strapping tempering production line with painting and oscillating

We provide the economic solution to the production of making tempered steel strapping.

From manufacturing of whole production line to installing, from desinging of the production

to updating of steel strapping tempering line. we can ship all the machines in one container with all the spare parts needed

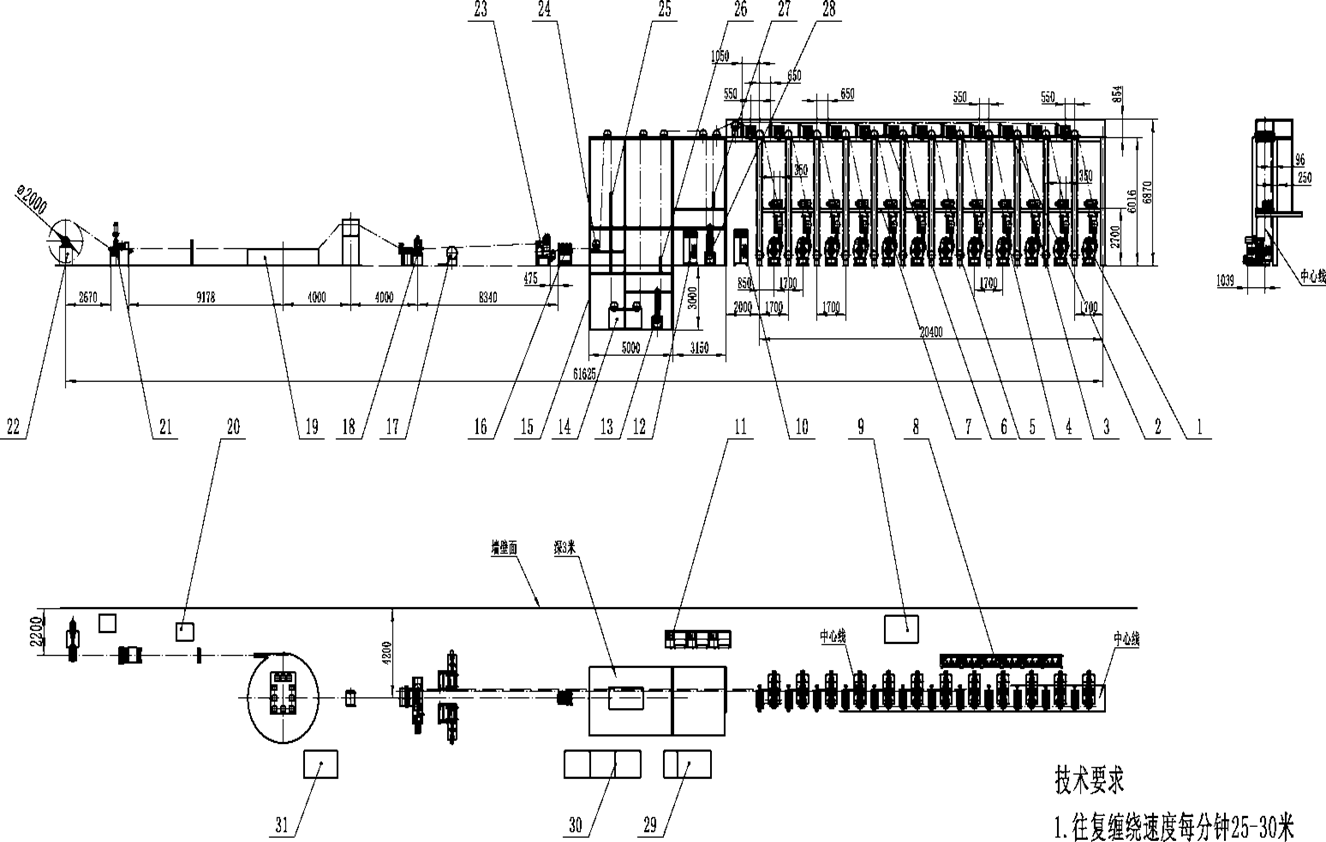

Steel strapping tempering and painting line 12 strips in China



NO

Note

Description

1

12WCYZ406500.01.0

1 Hydraulic expansion and contraction inclined block winder

2

120[406500.02.0

2 Upper pinch rollers

3

12W406500.03.0C

3 Lower pinch rollers

4

12WCYZ406500.04.0

4 Press belt tensioner

5

12WCYZ[406500.05.0

5 Single loopers and rollers

6

1201406500.06.0

6 Top bracket

7

12ffCYZ.J406500.07.0

7 Roll-up frame steel structure

8

12ffCYZJ406500.08.0

8 Electrical control part

9

12TOJ406500.09.0

9 Rear hydraulic station

10

120.1406500.10.0

10 Waxing and drying furnace electric control cabinet

11

12ffCYZJ406500.11.0

11 Electric control cabinet for blue furnace

12

12ffCYZJ406500.12.0

12 Electric control cabinet for paint drying furnace

13

12TOJ406500.13.0

13 Paint lifter

14

120.1406500.14.0

14 bluing cooling device

15

12ffCYZJ406500.15.0

15 blued steel frame structure

16

12ffCYZJ406500.16.0

16 Deburring machine

17

12ffCYZJ406500.17.0

17 Thread trimming machine 2.2KW

18

120.1406500.18.0

18 Slitting machine Motor 7.5 KW

19

12ffCYZJ406500.19.0

19 Horizontal Loopers

20

12ffCYZJ406500.20.0

20 Front hydraulic press 5.5 kw

21

12ffCYZJ406500.21.0

21 Hydraulic shear and welding platform

22

12ffCYZJ406500.22.0

22 inclined block type expansion and shrinking reel

23

12ffCYZJ406500.23.0

23 large S rollers

24

12ffCYZJ406500.24.0

24 Roller Set Parts

25

12ffCYZJ406500.25.0

25 blue furnace 160kw

26

1WCYZJ406500.26.0

26 Paint drying oven 120kw

27

12ffCYZJ406500.27.0

27 Waxing and drying furnace 100 kw

28

1WCYZJ406500.28.0

28 Waxing lifter

29

12ffCYZJ406500.29.0

29 Blue winder console

30

1MYZJ406500.30.0

30 Lacquer Oven Waxing Station

31

12ffCYZJ406500.31.0

31 Welding vertical large S-roller console

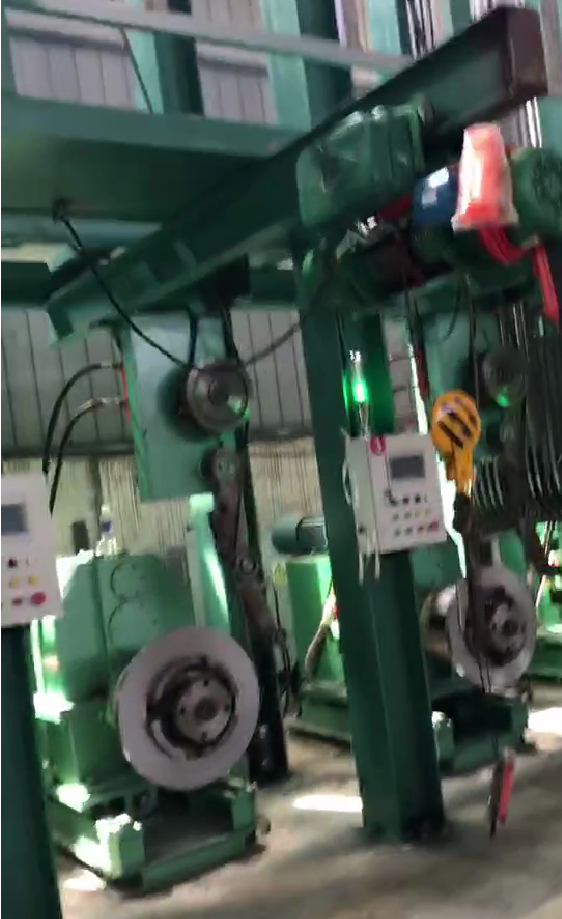

Video of machine installing and testing for 12 strips steel temering line in China



Feature of the this production line

This line can produce high tensile steel strapping with long elongation and strong performance

in heavy-duty steel strapping application

More videos of this steel strap production line:



Part one



Part two:
