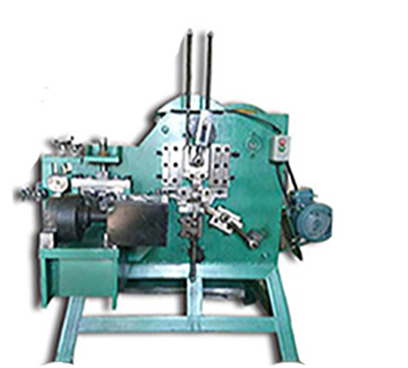

Specification of PET strapping clips machine

Specification SHEET

Specification & Data

Machine Name

PET STRAPPING

SEAL MAKING MACHINE

CE CERTIFI-CATION  NO.:

M.2019.206.C2559

Model No.

PSSM-16

CE REPORT NO:

TCF no. MICEZ-1903-0265-MD+LVD

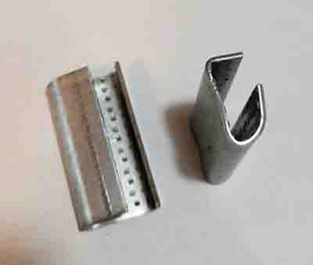

The machine for making metal clips of Polyester PET strapping 100

CE COVER PAGE

The machine for making metal clips of Polyester PET strapping 200

Technical data



Seal size



Seal

W

L

T



13 mm

13

27-30

0.7-1.0

The machine for making metal clips of Polyester PET strapping 400

16 mm

16

27-30

0.7-1.0

The machine for making metal clips of Polyester PET strapping 500

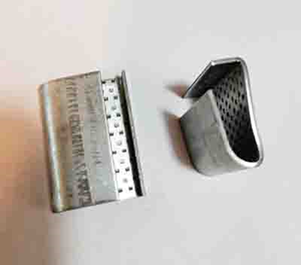

19 mm

19

27-30

0.7-1.0

The machine for making metal clips of Polyester PET strapping 800

Feeding L

260 mm

Production rate

60-80 PC/MINUTE

Motor power

1.1 kw

Voltage plans

V

Phase

HZ

A plan

380

3

60

B plan

220

3

60

C plan

220

Single phase

Accessories

Cutter of Spring Steel: 2 pieces



Net Weight

600 KG

Gross Weight

650 KG

Machine Size

1400x750x1250

Packing Size

1500x800x 1350

Packing method

Plywood box with reinforced steel structure

Lead time

3-4 weeks after advance payment 30%
One-year guarantee period, except quick-wear parts and natural damage or caused by human errors.

Payment term

30% advance payment by T/T before production
70 % balance against confirmation of samples and videos from the completed machine testing. before shipping.

Unite price
/set/FOB

FOB China port/with three molds/ 13 16 and 19 mm molds





++++++++++++++++++++++++++++++++++++++++++++++++++++++

which we will supply you with two sets for your future use,

because it is the most important spare parts for the machine.

Apart from this factor of strong serrated tooth, our machine

also make nice PET -strapping clip- with 1 mm thickness of

high quality steel plate which yield stregnth is > 340 Mpa.

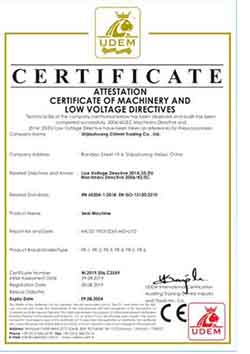

Our machine has passed the CE certificate inspection

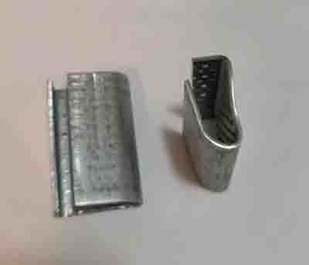

Specification of PET-strapping seal clipss machine for -16 mm- 16 x 30 mm



Please add our whatsapp and talk more about it there:

Whatsaa:0086-18621323471



Speed:90 pieces/minute

material: steel coil

Specification: PET-strapping clip-specification

Video: pet-strapping clip-video

Power: 1.1 KW

Machine weight: 550 KG

Machine size: 1.2 M2







it can produce 5/8" pet strapping seal



Specification of PET-strapping seal clipss machine for -16 mm- 16 x 30 mm



















More videos, please click for

[13 mm pet clip machine (-13 mm- )],

[16 mm PET clip machine ( -16 mm-)],

and

[19 mm PET clip machine (-19 mm-)]".
